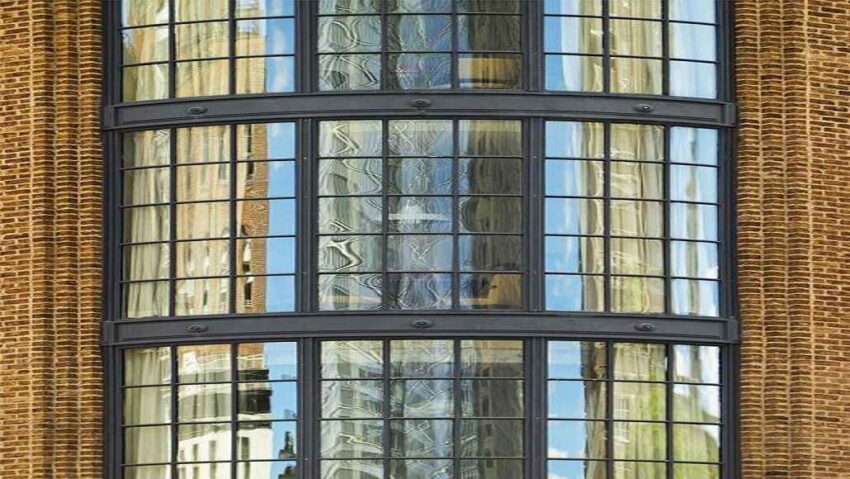

In terms of any type of building, the home windows are sometimes the ultimate piece that completes the outside of the constructing. As we famous in our put up Home windows of the Future, glass expertise is consistently evolving. One sort of glass that’s changing into more and more common is curved glass. This sort of glass has turn out to be an emblem of cutting-edge structure, fusing aesthetics with innovation. Whether or not gracing the facade of a recent museum or wrapping round a luxurious lodge, curved glass provides a way of fluidity and trendy class that flat panels merely can’t match. However behind each seamless wave of glass lies a fancy, multi-phase course of—from conceptual sketches to the ultimate set up. This text takes you thru the complete lifecycle of a curved glass facade, exploring the important thing levels that carry these refined architectural options to life.
1. The Imaginative and prescient: Architectural Design and Planning
The journey of a curved glass facade begins within the conceptual design section. Architects envision the function the curved glass will play—will it soften the constructing’s kind, replicate surrounding surroundings, or create an immersive light-filled house?
Design Concerns
Architects should steadiness inventive ambition with engineering feasibility. A number of the foremost concerns at this stage embrace:
- Radius of curvature: Tighter curves require extra advanced fabrication.
- Panel dimension: Bigger panes can decrease seams however pose transport and dealing with challenges.
- Efficiency: Glass should meet power effectivity, security, and acoustical requirements.
Collaboration is essential at this level. Architects typically work carefully with structural engineers and facade consultants to find out whether or not the design is viable. Digital instruments like Constructing Info Modeling (BIM) and parametric modeling assist take a look at completely different types and structural habits.
2. Engineering and Structural Evaluation
As soon as the conceptual design is authorized, structural engineers step in to make sure the curved facade can face up to real-world forces, resembling wind hundreds, thermal growth, and seismic exercise.
Glass Sorts and Structural Assist
There are two main forms of curved glass used:
- Scorching-bent glass: Heated in a furnace till pliable, then formed over a mould.
- Chilly-bent glass: Flat glass panels are gently bent right into a body on-site, typically utilizing minimal curvature.
The help system additionally varies. Curved glass could also be:
- Self-supporting, during which the glass is laminated and structurally bonded
- Supported by metal or aluminum framing methods, providing additional rigidity
The selection of help impacts not solely look but in addition value, security, and power efficiency.
3. Glass Manufacturing: From Flat to Fluid
The manufacturing stage is the place flat sheets of glass are remodeled into gorgeous curved types. It’s a difficult course of, which is why Flickinger Glassworks calls the creation of a curved window “a fragile dance between precision and creativity”. As per the curved glass specialists, all of it begins with choosing the best high quality glass for its readability and energy. Every curve should then match design specs inside tight tolerances.
Scorching Bending Course of
In scorching bending, the glass is:
- Heated to ~600–700°C in a bending furnace
- Molded over a customized kind
- Cooled slowly to stop stress fractures (annealing)
This methodology is good for advanced or compound curves and ensures optical readability and sturdiness.
Chilly Bending Course of
In chilly bending, a flat panel is compelled into form inside its body, usually throughout set up. It’s quicker and cheaper than scorching bending, but it surely’s appropriate just for large-radius curves and when optical distortion is appropriate.
Lamination and Coatings
After bending, glass panels are sometimes laminated (two or extra layers bonded with a plastic interlayer) for security.
They might additionally obtain:
- Low-E coatings for power effectivity
- Tinting or fritting for photo voltaic management or design
4. Logistics and Transportation
Curved glass panels are fragile, cumbersome, and costly, making transportation a vital section. Logistics groups coordinate transport routes, packaging supplies, and dealing with methods to make sure protected supply from the manufacturing facility to the job website.
Dealing with Challenges
- Customized crates are constructed to guard edges and preserve curvature.
- Cranes or vacuum lifters are used for unloading.
- Temperature fluctuations throughout transport are additionally thought-about, as thermal shock can harm improperly dealt with glass.
5. On-Web site Set up
With the glass panels on-site, the main target shifts to set up. It’s a course of that calls for cautious coordination between glass installers, facade engineers, and building crews.
Precision Mounting
Set up begins with anchoring the help system—usually a curtain wall body or customized mounting construction. Every glass panel should:
- Be lifted and aligned with out flexing or cracking
- Match seamlessly into pre-fabricated mounts
- Keep weatherproofing through gaskets, sealants, or glazing methods
In cold-bent initiatives, bending might occur on-site because the panel is positioned right into a specifically designed body.
High quality Assurance
Earlier than last sign-off, groups examine:
- Alignment and curvature accuracy
- Seal integrity (to stop air or water leaks)
- Optical distortion or floor defects
6. Publish-Set up: Upkeep and Efficiency
The lifecycle of a curved glass facade doesn’t finish at set up. Lengthy-term efficiency is an important consideration for homeowners and facility managers.
Cleansing and Upkeep
Curved surfaces can entice filth or water in another way than flat glass. Buildings typically use:
- Automated cleansing methods for prime facades
- Hydrophobic coatings to repel moisture and cut back streaking
Thermal and Acoustic Monitoring
Sensors could also be embedded to observe:
- Temperature adjustments throughout the glass cavity
- Acoustic insulation efficiency
- Structural motion over time
Correct upkeep ensures the facade retains its transparency, security, and thermal efficiency for many years.
7. Iconic Examples: Well-known Curved Glass Facades Across the World
Curved glass has graced a few of the world’s most iconic buildings, setting benchmarks for design and innovation. One standout instance is the Apple Park campus in Cupertino, the place 3,000 curved glass panels create a steady ring across the headquarters, making it one of many largest curved glass constructions ever constructed. In London, Harvard Design Journal particulars how 30 St Mary Axe—popularly often called The Gherkin—includes a distinctive curved glass exterior that enhances pure air flow and minimizes photo voltaic acquire. In the meantime, the Louis Vuitton Basis in Paris, designed by Frank Gehry, showcases sweeping glass “sails” that show the inventive potential of curved glazing. These buildings don’t simply replicate technical mastery—they characterize how curved glass can elevate structure into sculpture.
Conclusion: Artwork Meets Engineering
Curved glass facades characterize the right union of artwork, engineering, and expertise. From the architect’s pen to the ultimate panel locked into place, each section of the method requires precision, coordination, and experience. As extra designers push the boundaries of kind and performance, curved glass continues to reshape skylines—one clean, shimmering curve at a time.
