A biofilm kinds on the inside floor of concrete as seawater penetrates the concrete of a highway tunnel. A examine by researchers at Chalmers College of Know-how (positioned in Sweden) factors to the mechanisms behind the degradation and its unexpectedly speedy development.
Allow me to nerd out with some concrete science information for a second.
Saltwater Intrusion
Within the building of a car tunnel via rock, the roof and partitions are sprayed with concrete to create a good floor layer and stop stones from loosening and falling onto the highway. When these are surrounded by seawater, the phenomenon generally known as saltwater intrusion happens. Saltwater intrusion is a course of that carries micro organism, which then kind biofilms (or colonies) on the floor of the concrete.
That micro organism feed on the supplies within the concrete, weakening the floor and inflicting it to develop into porous, inflicting excessive prices and rising the danger of injury ought to items of the concrete fall from the tunnel’s roof. Researchers at Chalmers College declare to have found new insights in regards to the processes behind this degradation.
Frank Persson – Chalmers College of Know-howChalmers College of Know-how | Catharina Björk
Frank Persson, Affiliate Professor of Molecular Biology and Microbial Ecology at Chalmers’ Division of Structure and Civil Engineering, says that the researchers have been taking measurements within the Oslofjord tunnel since 2014. The tunnel runs about 23,970 ft. lengthy and reaches about 440 ft under imply sea degree.
Persson states that they’ve noticed micro organism consuming into the concrete floor as much as 1 cm a 12 months. The biofilm kinds on the level of saltwater intrusion, nevertheless… all concrete in touch with water can get biocorrosion.
Not Distinctive to Norwegian Tunnels
As reported within the official announcement, sprayed concrete has been utilized in highway tunnels on a bigger scale because the Nineteen Nineties, and since then, researchers have been capable of see this fouling of biofilm. Regardless of this, there are at the moment only a few comparable research of biocorrosion in underwater tunnels in marine environments.
Britt-Marie Wilen – Chalmers College of Know-howChalmers College of Know-how | Anna-Lena Lundqvist
“The issue might be larger in environments the place seawater penetrates, partly as a result of seawater is beneficial for bacterial progress but in addition as a result of the salt accelerates corrosion within the reinforcement. Local weather change can also be making the oceans hotter, and with hotter water, the pH worth drops additional, which may enhance the speed of corrosion,” says Wilén.
New concrete sprayed on partitions and ceilings in tunnels has a excessive pH worth, however because the concrete ages, a pure chemical degradation happens, which causes the pH worth of the concrete to drop and makes the setting extra hospitable to micro organism.
The micro organism additional speed up the corrosion of the concrete reinforcement and in flip, the degradation of the concrete itself, after they metabolise iron, manganese, sulphur, and nitrogen within the concrete. The researchers have seen that this interacting degradation regionally will be comparatively quick. Underneath excessive situations, the micro organism can penetrate as much as 10 cm in 5 years.

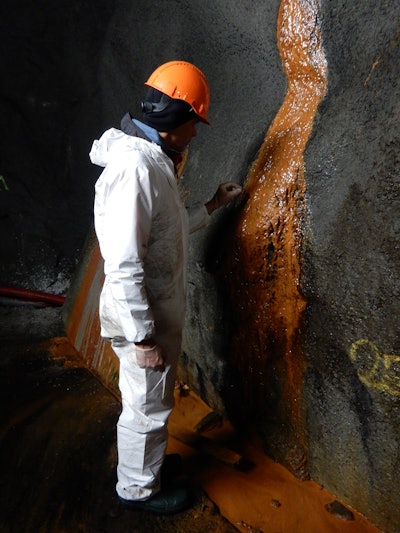

Chalmers College of Know-how | Britt-Marie Wilén
Wilén explains that forged concrete is extra compact. It is power aids to it is resistance to degradation – which means it takes an extended time for the concrete to degrade. Then again, sprayed concrete is extra porous and extra vulnerable to degradataion by micro organism.
Wilén provides:
[Sprayed concrete] additionally typically accommodates metal fibers for elevated power. When the iron is oxidized as a consequence of corrosion, it additionally [can] act as substrate for some micro organism (iron-oxidizing micro organism) that may speed up the biocorrosion even additional. Bridges in water and particularly in saline water can get biofilm progress and therefore biocorrosion.
Wilén sees the biofilm as a transparent warning sign. Keeping track of the development might be useful: measure the pH of the water that’s transported on the concrete, monitor the unfold of the biofilm, and find any unfastened/broken concrete, and eradicating the biofilm would all be helpful.
“One other chance is probably so as to add materials that seal the cracks within the rock/concrete,” says Wilén.
Concrete has initially very excessive pH and micro organism can’t survive on it. As soon as the pH begins to go down, they will colonize the floor and begin forming biofilm underneath which the pH can go down after which the biocorrosion begins. As soon as it has began, it may be additional accelerated if substrate is on the market. The Ca begins to be dissolved and the concrete turns into extra porous and weak.
Security
The researchers emphasise that highway tunnels, regardless of this biofilm, are usually protected and are monitored by Norwegian authorities. It could possibly be a harmful scenario ought to the concrete develop into too skinny, permitting items of concrete to fall. So far as the researchers know, this has not occurred.
Their advice based mostly on the research is to measure the pH worth of the concrete constantly, study the groundwater circulation via the rock, and to watch the unfold of the biofilm. The groundwater circulation impacts the expansion of biofilm, particularly at decrease flows, the place the pH worth of the biofilm is decrease, which contributes to sooner degradation of the concrete than at the next groundwater circulation that neutralises the acid within the biofilm.
